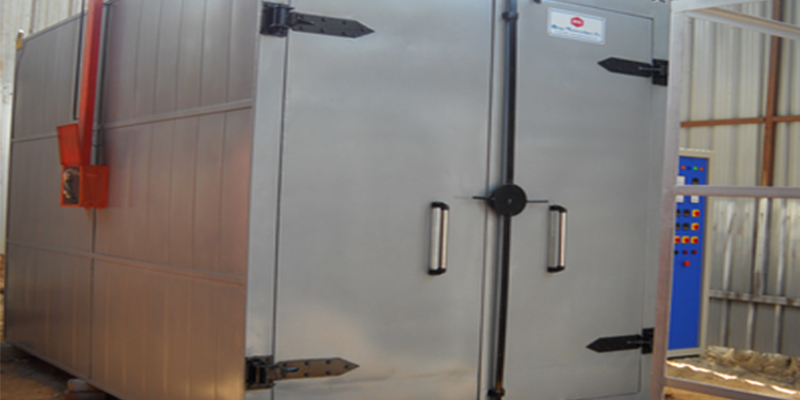

MOTOR FRAME HEATING OVEN

MOTOR FRAME HEATING OVEN

We are recognized as one of the leading Motor Heating Oven Manufacturers in India, specializing in robust, precision-engineered thermal equipment essential for the electric motor winding, repair, and manufacturing industries. Our ovens are critical for processes that demand absolute temperature consistency and reliable cycle control, ensuring the integrity and longevity of motor components.

Our motor heating ovens deliver the ideal thermal environment for applications such as Varnish Curing, Stator Preheating, Rotor Bake-Out, and Controlled Burnout (stripping), meeting stringent quality standards and maximizing motor efficiency.

Key Features & Highlights

Our Industrial Motor Heating Ovens are custom-built for the rigorous demands of motor service:

• Exceptional Temperature Uniformity: Engineered with high-volume, high-velocity airflow (Forced Convection) to guarantee temperature distribution within tight tolerances (e.g., ), critical for consistent varnish curing and uniform stress relief.
• Specialized Varnish Curing Chambers: Designed to handle volatile organic compounds (VOCs) from varnishes with safe, high-capacity exhaust and ventilation systems, ensuring compliance and worker safety.
• Heavy-Duty Construction & Insulation: Features a robust inner and outer shell with superior density insulation to maintain thermal integrity during long curing cycles and enhance energy efficiency.
• Advanced PLC Controls for VPI: Utilizes PLC-based, multi-step control systems to manage complex temperature profiles required for Vacuum Pressure Impregnation (VPI) curing cycles (e.g., Ramp-Soak programming).
• Controlled Burnout/Strip Oven Integration (Optional): Offers specialized models for controlled pyrolysis (burnout) of old insulation/varnish, incorporating afterburners and precise oxygen control to protect the stator core's lamination integrity.
• Trolley/Batch and Conveyor Options: Available in walk-in/truck-in batch designs for repair shops or continuous conveyor models for high-volume motor manufacturing lines.

Technical Specifications (Standard Varnish Curing Model)

Typical Applications

Our Motor Heating Ovens are indispensable for achieving quality and reliability in motor components:

• Varnish & Resin Curing: Baking stators and rotors after dipping (VPI or dip-and-bake) to ensure optimal insulation, moisture resistance, and mechanical strength.
• Stator/Rotor Preheating: Heating components prior to VPI to ensure resin viscosity is ideal for deep penetration and full saturation of the windings.
• Stress Relieving: Post-weld or post-machining heat treatment of motor frames and core assemblies.
• Winding Strip/Burnout (Specialized Models): Safely removing old varnish and insulation from failed windings at controlled temperatures without damaging the core laminations.
• Drying: Removing moisture from windings and insulation before re-varnishing and curing.
